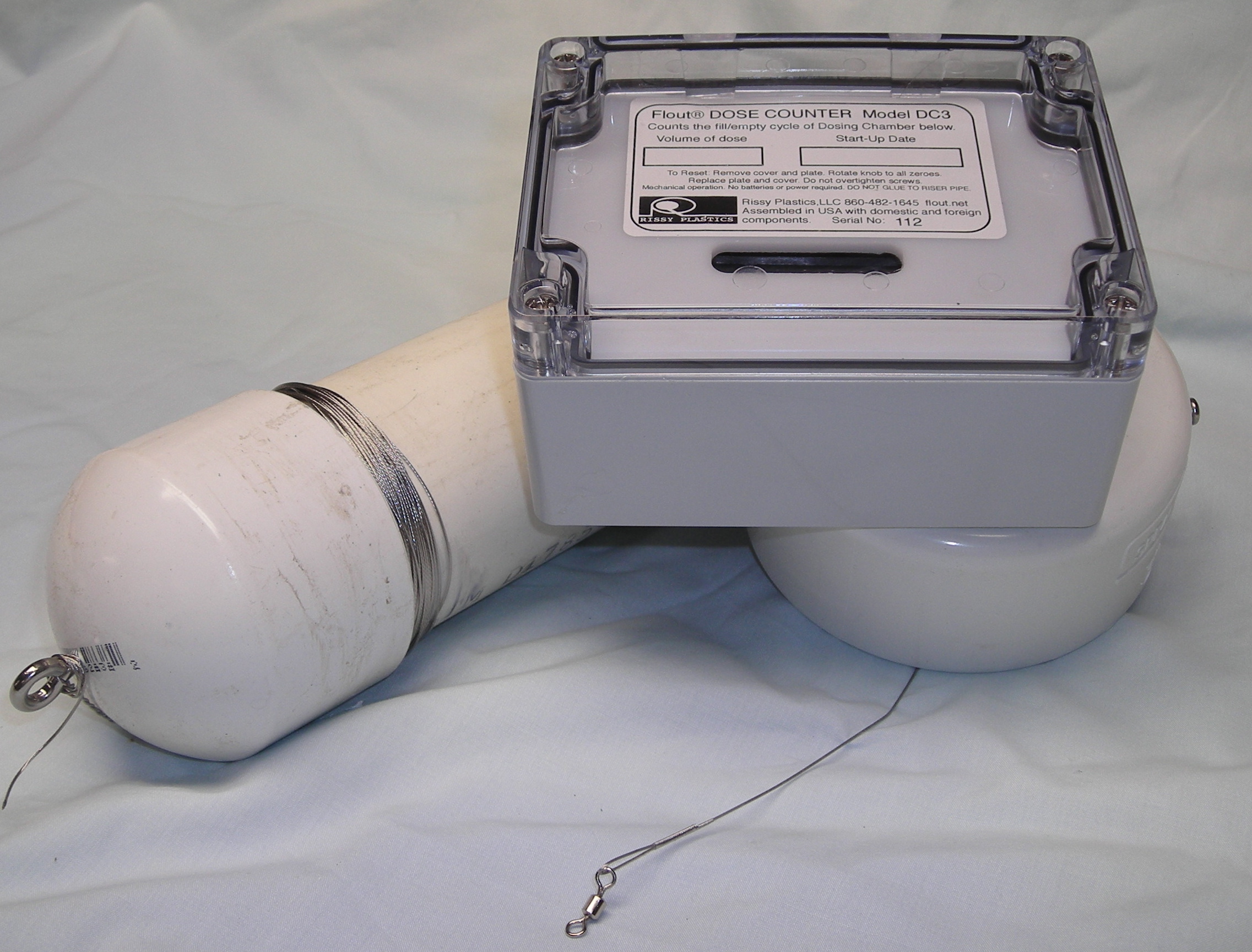

Counter includes watertight enclosure and actuator float.

Counter mounts on 3 inch pipe riser.

Float fits through the riser pipe. See instruction download for applications.

Introducing a good old fashioned and reliable way to record Flout cycles or any fill/empty event.

This is a non-electric, gravity powered, never forgetting mechanical counter for keeping track of dosing cycles. The housing is waterproof and must pass a submersion test before shipping. A high quality rubber seal is employed where the stainless steel actuator wire enters. The supplied activator float is light enough to float but heavy enough to pull the lever on the counter each time the dosing chamber cycles.

With a known dose volume, a counter will tell the amount of water used in a system.

The counter may be mounted inside or outside of the dosing chamber. It fits on a length of three inch sch.40 pipe. The activator float may slide within the same pipe or hang freely in the chamber. The pipe may support the counter above ground level or flush to the ground with a lawn box (hand hole)

The counter may be reset, but to prevent tampering, the housing must be opened to do so.

The counter needs 6 inches minimum of drawdown to function.  Optionally, the counter may be tethered directly to the Flout  to track each one in a sequenced chamber.

Dose Conter Model DC3
